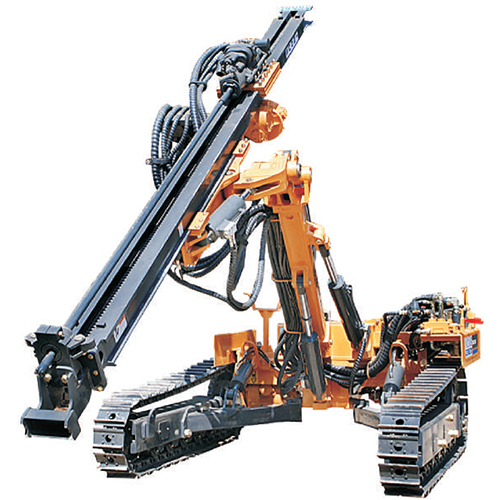

IRB 200 Pneumatic Crawler Drill

Get a Price/Quote

MOQ : 1 Unit

IRB 200 Pneumatic Crawler Drill Specification

Motor Power
Utilizes Pneumatic Motors (No Electrical Motor)

Noise Level
Standard Pneumatic Equipment Level

Features
Crawler Mounted, Robust Design, Easy Maneuverability, High Drilling Efficiency

Machine Type
Crawler Mounted Drilling Machine

Cutting Area
Suitable for Benches and Rocky Terrain

Condition
New

Dimension (L*W*H)
4800 mm x 2200 mm x 2300 mm

Spindle Speed
Variable, Pneumatic

Frequency
Not Applicable (Pneumatic)

Diameter
Drilling Hole Diameter Range: 76 mm to 102 mm

Product Type
Pneumatic Crawler Drill

Material
Heavy-duty Steel and Alloy Components

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Manual with Pneumatic Controls

Voltage
Pneumatic Powered (No Electrical Requirement)

Power
Compressed Air Driven

Power Source
Compressed Air

Weight (kg)
Approx. 3000 kg

Capacity
Can Drill up to 102 mm Diameter Holes

Color
Yellow/Orange

Usage & Applications
Open Cast Mining, Quarrying, Construction, Bench Drilling Applications

Operating Pressure
6-7 kg/cm2 (85-100 psi)

Air Consumption
Approx. 200-300 cfm at 100 psi

Feed Drive
Pneumatic Cylinder

Climbing Ability
Up to 30 Gradient

Tramming Speed
1.5-2 km/hr

Drilling Depth
Maximum 20 meters per set-up

Drill Rod Length
Up to 3 meters

Feed Force
Up to 3500 kg

Application Surface
Rock, Hard Soil, Limestone, Granite

Track Type
Heavy-duty Crawler Tracks

Rotation Speed
0-100 RPM (variable, pneumatic)

IRB 200 Pneumatic Crawler Drill Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
12 Units Per Month

Delivery Time
2-4 Days

IRB 200 Pneumatic Crawler Drill About

Model	Unit	IRB 115-DTH/ TH	IRB 115 HSD	IRB 175-STD /Wide	IRD 200-DTH/ TH
Working weight (Approx)	kg	2700	2650	3200/3300	5300
DTH/ Top hammer	Type	DTH/ TH	HSD (IPD 10)	DTH	DTH/ TH
Hole diameter	mm	89-115/ 48-76	32-38	89-125/ 150-200	89-130/ 64-102
Rod length	mm/feet	3000 (10)	3660 (12)	3000 (10)	3660 (12)
Hole depth	mtr/Feet	15/48	4/12 Single	15-40 10-30	15-48
Recommended air compressor	CFM/ PSI	500/200 500/185 470/220	300/100 350/100	470/220 550/200 575/225	450/200 500/185 550/200 580/100
Compressor
Air conditioner
Cabin

Experience matchless performance with the IRB 200 Pneumatic Crawler Drill, an extraordinary choice for demanding drilling tasks. Customizable in delivery and built from glorious heavy-duty steel and alloy components, this semi-automatic machine is designed for superior durability. It efficiently drills hole diameters from 76 mm to 102 mm to a depth of up to 20 meters per set-up. With a pneumatic feed drive, robust crawler tracks, and a variable rotation speed, the IRB 200 offers easy maneuverability and high drilling efficiency. Procure this drill today-simply Add to Cart for prompt fulfillment.

Special Features & Material Advantages of the IRB 200

The IRB 200 Pneumatic Crawler Drill stands out for its robust crawler-mounted design, ensuring extraordinary stability and mobility on rocky terrain and construction sites. Distinguished by heavy-duty steel and alloy construction, this machine is characterized by longevity and exceptional performance. Its variable pneumatic feed and rotation speed allow for tailor-made operation, suited for rock, limestone, granite, and more. Enjoy high drilling efficiency and reliable safety through its streamlined pneumatic and manual controls-increasing both productivity and user confidence.

Supply, FOB Port, and Order Process for IRB 200

We supply the IRB 200 Pneumatic Crawler Drill from major FOB ports in India, ensuring streamlined export processes for global traders. Orders are completed with careful attention to schedule, ensuring timely dispatch and delivery. Standard payment terms include advance payments and secure transactions for peace of mind. Our main export markets are South Asia, Africa, and the Middle East. Contact us for detailed supply estimates and to secure your IRB 200-procure this glorious equipment with confidence.

FAQ's of IRB 200 Pneumatic Crawler Drill:

Q: How does the IRB 200 Pneumatic Crawler Drill operate without electrical power?

A: The IRB 200 is fully pneumatic, running entirely on compressed air without the need for electrical power sources, making it reliable and safe for remote and rugged work sites.

Q: What are the advantages of the heavy-duty crawler tracks on the drill?

A: The crawler tracks provide extraordinary maneuverability and stability, ensuring consistent performance even on rocky and uneven terrains, essential for mining, quarrying, and construction applications.

Q: Where can the IRB 200 be effectively used?

A: This drill is designed for use on rock, hard soil, limestone, and granite, making it ideal for open cast mining, bench drilling, quarrying, and large-scale construction sites.

Q: What is the maximum drilling capacity per set-up for the IRB 200?

A: The IRB 200 can achieve a maximum drilling depth of 20 meters per set-up with a drilling hole diameter range of 76 mm to 102 mm.

Q: What is the process to order and procure the IRB 200 from your company?

A: To procure the IRB 200, simply Add to Cart or contact our sales team for a quotation. Once the order is confirmed, we supply from our Indian FOB ports with secure payment options and provide an estimated timeline for delivery.

Q: How does the robust material feature benefit long-term usage?

A: Constructed from heavy-duty steel and alloy components, the IRB 200 boasts matchless durability and a longer operating life, reducing maintenance needs and downtime for users.
